(0 nhận xét) | Nhận xét của bạn
Tình trạng: Còn hàng
Bảo hành: 36 tháng
9.800.000 VNĐ 14.150.000 VNĐ
Giao hàng: (Xem chi tiết tại đây)
- Chuẩn Wi-Fi: 802.11ax (Wi-Fi 6 Smart antenna)
- Băng tần: Dual-band (2.4 GHz + 5 GHz)
- Tốc độ tối đa: 1.575 Gbps (0,575 Gbps ở 2,4 GHz và 1,2 Gbps ở 5 GHz)
- Số luồng: 4x4 MIMO
- Cổng mạng:
1 x 10M/100M/GE RJ45
1 x 10M/100M/GE SFP
- Kích thước: 200mm x 200mm x 69mm (1.91kg)
- Nguồn cấp: POE IEEE 802.3at/af
- Số lượng thiết bị kết nối: ≤ 1.024
- Số lượng thiết bị kết nối đồng thời: 120
- Bán kính phủ sóng tối ưu: 250m
- Tính năng: MU-MIMO, OFDMA, Beamforming, Bảo mật WPA3, Hỗ trợ nhiều SSID, VLAN, quản lý tập trung
- Ứng dụng: Môi trường mật độ cực cao, khu vực cần băng thông lớn, hỗ trợ thiết bị Wi-Fi 6E mới
Thông số kỹ thuật

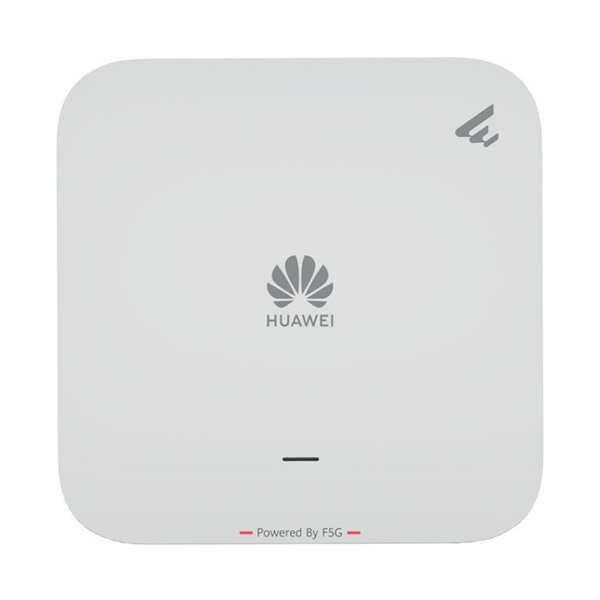

Model | eKitEngine AP761 |
Technical specifications | |
Dimensions (H x W x D) | • 69 mm x 200 mm x 200 mm |
Weight | • 1.91 kg |
Port | • 1 x 10M/100M/GE electrical port • 1 x SFP optical port NOTE: The GE electrical port supports PoE-In. |
Bluetooth | • BLE 5.2 |
LED indicator | • Indicate the power-on, startup, running, alarm, and fault states of the system. |
Power supply specifications | |
Power input | • PoE power supply: in compliance with IEEE 802.3at/af NOTE: When working in 802.3af power supply mode, the AP is restricted in functions. |
Maximum power consumption | • 17.7 W |
Environmental | |
Operating temperature | • –40°C to +65°C (From 1800 m to 5000 m, the maximum operating temperature of the device decreases by 1°C for every 300 m increase in altitude.) |
Storage temperature | • –40°C to +85°C |
Operating humidity | • 0%–100% |
IP rating | • IP68 |
Altitude | • –60 m to +5000 m |
Atmospheric pressure | • 53 kPa to 106 kPa |
Radio specifications | |
Antenna type | • Built-in directional antennas NOTE: • The horizontal and vertical beamwidths of 2.4 GHz antennas are 65° and 40°, respectively. • The horizontal and vertical beamwidths of 5 GHz antennas are 65° and 20°, respectively. |
Antenna gain | • 2.4 GHz: 10 dBi • 5 GHz: 11 dBi • BLE: 5 dBi |
Maximum quantity of SSIDs on each radio | • ≤ 16 |
Maximum number of STAs | • ≤ 1024 (512/radio) NOTE: The actual number of users varies according to the environment. |
Maximum transmit power | • 2.4 GHz: 28 dBm (combined power) • 5 GHz: 27 dBm (combined power) NOTE: The actual transmit power varies according to local laws and regulations. |
Power adjustment increment | • 1 dBm |
